Description

The C-Connex X-Series Splice and MPO cassettes are modular, front-access fiber management solutions designed for high-density environments within the X-Series platform. Each cassette supports up to 24 fibers in an LC duplex format and fits a compact 157 x 166 x 30 mm footprint, allowing efficient installation and cable routing with no rear access required.

• The X-Series MPO Cassette features two Base-12 MPO ports and 12x LC duplex shuttered dust-proof adapters on the front face, providing streamlined MPO-to-LC breakout. It is available in singlemode (UPC/APC) and multimode (OM3/OM4) configurations, supporting low insertion loss and high return loss across all variants.

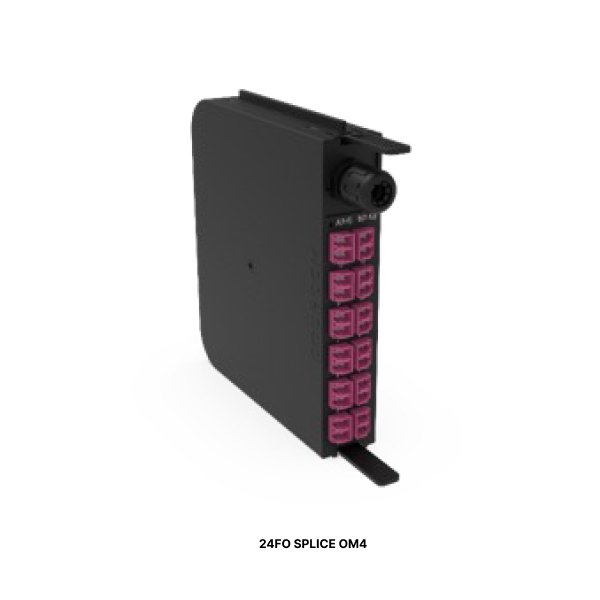

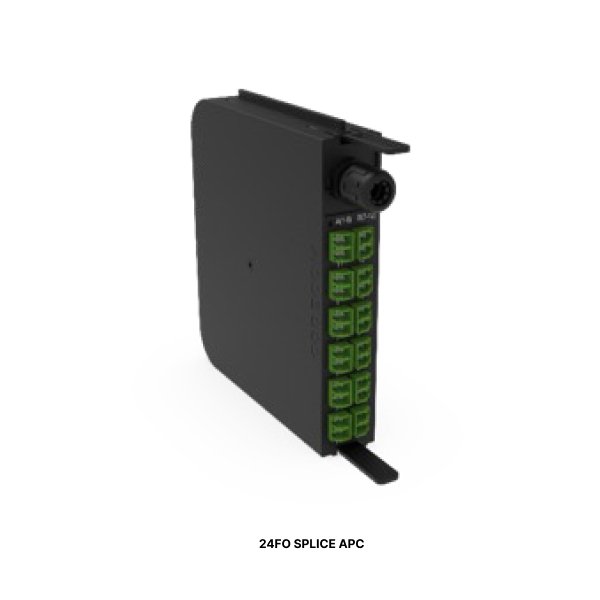

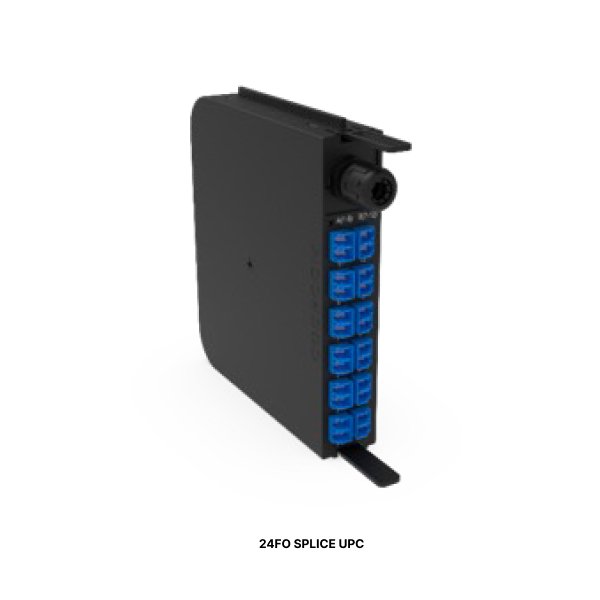

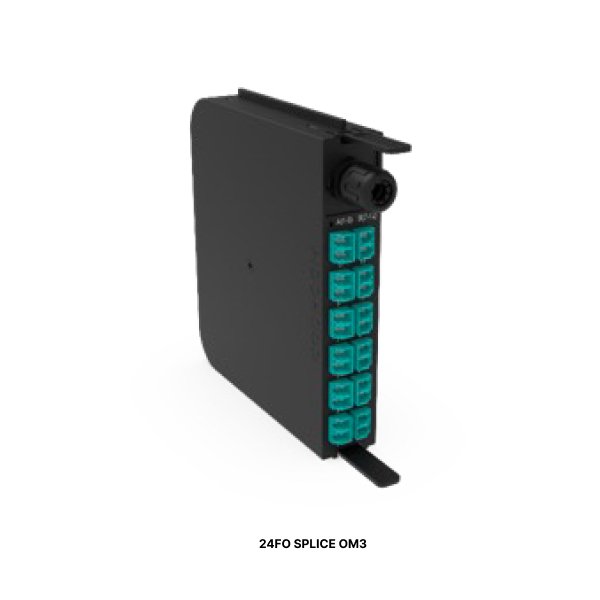

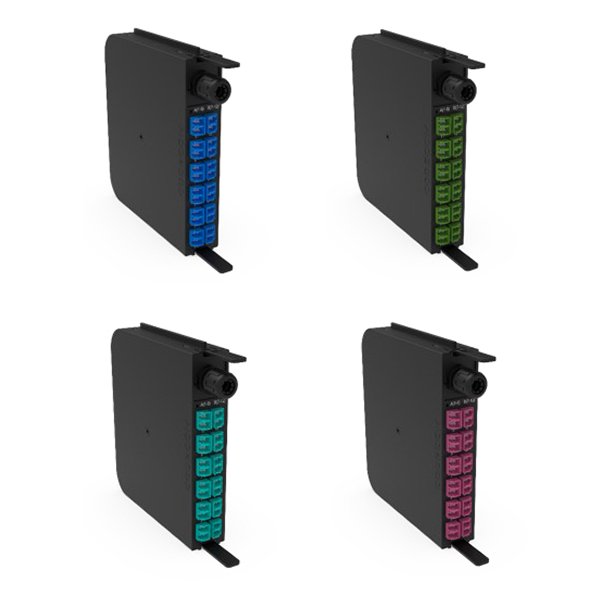

• The X-Series Splice Cassette enables direct front-access splicing using a cable gland and integrated splice tray that supports up to 24 LC terminations. It is compatible with 40mm heat shrink sleeves and accommodates both standard and ribbon-style splicing, with a max incoming cable diameter of 8 mm—all accessible from the front of the panel.

Both cassettes are constructed from durable PC+ABS materials and feature shuttered dust-proof LC adapters for enhanced protection. Fully compliant with RoHS, REACH, and SvHC standards, the X-Series cassettes are optimized for space-saving, technician-friendly deployment in modern data center and telecom networks.
